CALSIUM SILLICATE
Calsium Sillicate digunakan untuk mengisolasi pipa dan peralatan bersuhu tinggi dan aplikasi daya tahan api. Bentuk calsium sillicate yang kami jual adalah calsium sillicate board dan calsium sillicate pipe. Calsium Sillicate terkenal dengan kekuatan tekannya yang tinggi, sifat penghambat korosi, dan integritas struktural suhu tinggi.
Calsium Sillicate Pipe
Calsium Sillicate Pipe adalah jenis insulasi yang berbentuk pipa karena apilaksinya yang dikhususkan untuk menjadi insulasi pipa. berikut ini adalah spesifikasi tebal dan diameter yang tersedia.
CALSIUM SILLICATE PIPE TEBAL 25 mm
| TYPE | CSP25.01 | CSP25.02 | CSP25.03 | CSP25.04 | CSP25.05 | CSP25.06 | CSP25.07 | CSP25.08 | CSP25.10 | CSP25.11 | CSP25.12 | CSP25.13 |
| DIAMETER (INCH) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 4-1/2 | 5 | 5-1/2 |
| TYPE | CSP25.14 | CSP25.15 | CSP25.16 | CSP25.18 | CSP25.20 | CSP25.22 | CSP25.24 | CSP25.25 | CSP25.26 | CSP25.28 | CSP25.30 | CSP25.32 |
| DIAMETER (INCH) | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 17 | 18 | 20 | 24 | 28 |

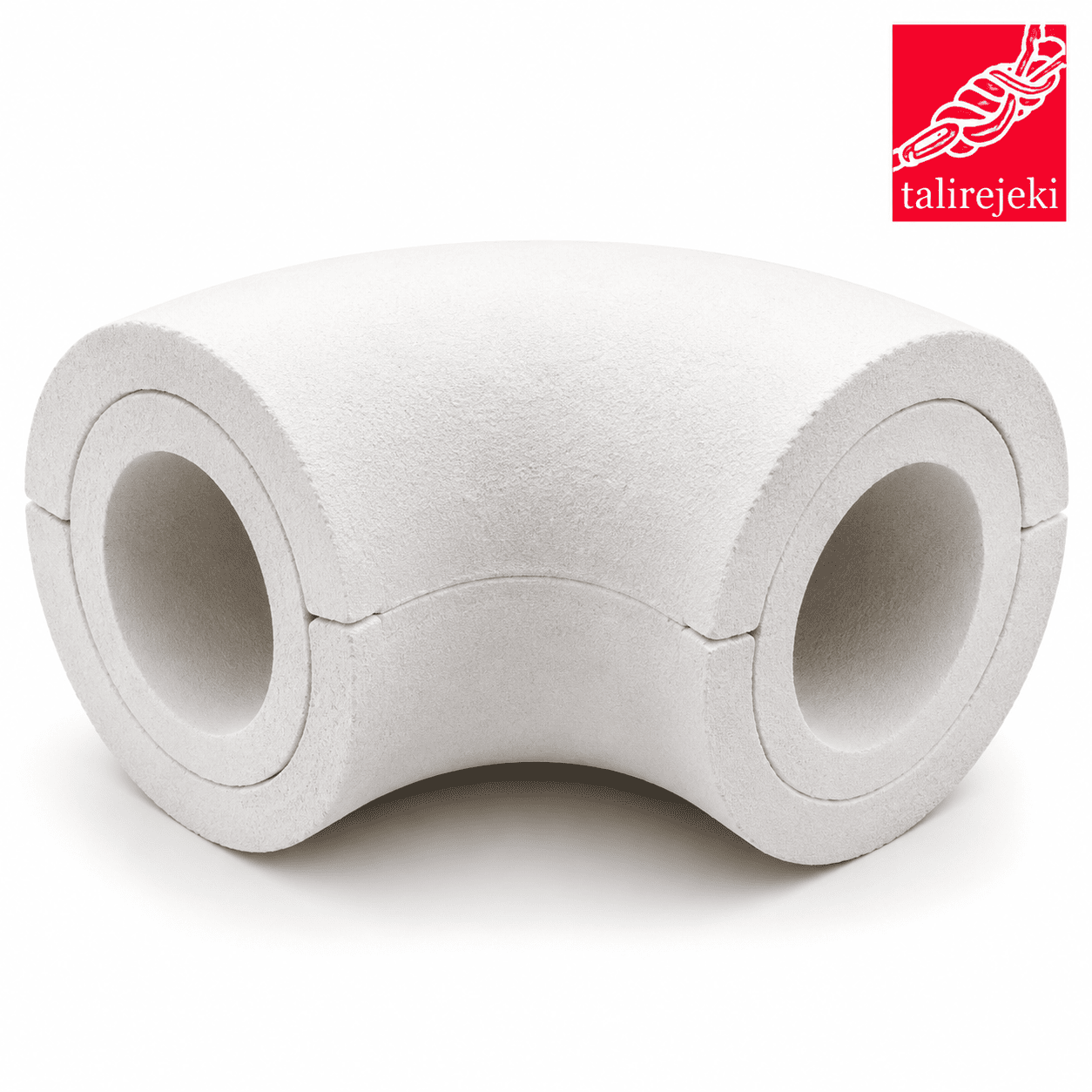

CALSIUM SILLICATE PIPE TEBAL 30 mm
| TYPE | CSP30.01 | CSP30.02 | CSP30.03 | CSP30.05 | CSP30.06 | CSP30.07 | CSP30.08 | CSP30.10 | CSP30.16 | CSP30.17 | CSP30.20 |
| DIAMETER (INCH) | 1/2 | 3/4 | 1 | 1-1/2 | 2 | 2-1/2 | 3 | 4 | 8 | 9 | 12 |

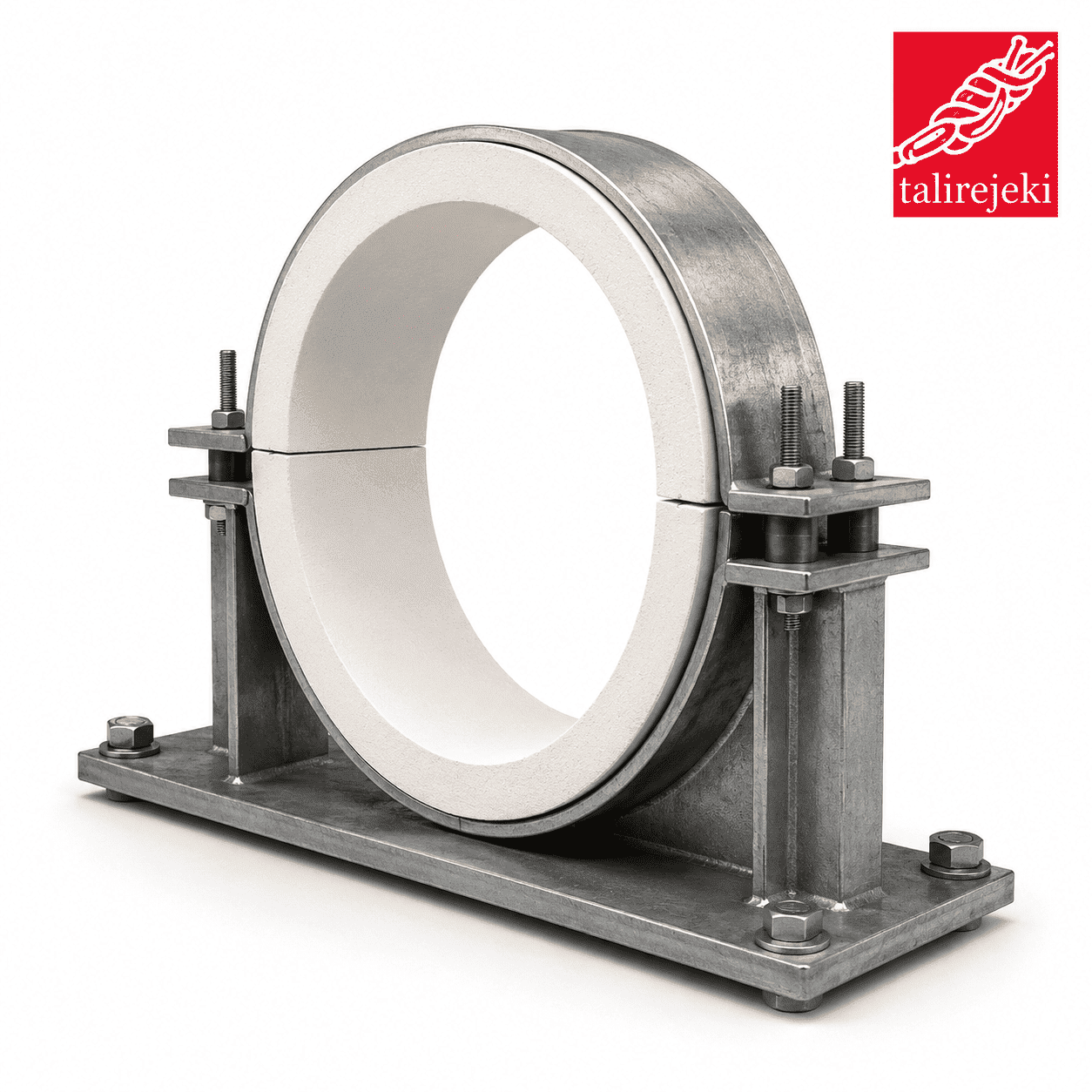

CALSIUM SILLICATE PIPE TEBAL 40 mm
| TYPE | CSP40.01 | CSP40.02 | CSP40.03 | CSP40.04 | CSP40.05 | CSP40.06 | CSP40.07 | CSP40.09 | CSP40.10 | CSP40.11 |
| DIAMETER (INCH) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3-1/2 | 4 | 4-1/2 |
| TYPE | CSP40.12 | CSP40.14 | CSP40.15 | CSP40.16 | CSP40.18 | CSP40.20 | CSP40.22 | CSP40.23 | CSP40.24 | CSP40.26 |
| DIAMETER (INCH) | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 15 | 16 | 18 |
| TYPE | CSP40.27 | CSP40.28 | CSP40.30 | CSP40.31 | CSP40.33 | CSP40.34 | CSP40.35 | CSP40.36 | CSP40.38 | CSP40.40 |
| DIAMETER (INCH) | 19 | 20 | 24 | 26 | 30 | 32 | 34 | 36 | 42 |
CALSIUM SILLICATE PIPE TEBAL 50 mm
| TYPE | CSP50.01 | CSP50.02 | CSP50.03 | CSP50.04 | CSP50.05 | CSP50.06 | CSP50.07 | CSP50.09 | CSP50.10 | CSP50.11 |
| DIAMETER (INCH) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3-1/2 | 4 | 4-1/2 |
| TYPE | CSP50.12 | CSP50.14 | CSP50.15 | CSP50.16 | CSP50.17 | CSP50.18 | CSP50.19 | CSP50.20 | CSP50.21 | CSP50.22 |
| DIAMETER (INCH) | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 |
| TYPE | CSP50.23 | CSP50.24 | CSP50.25 | CSP50.26 | CSP50.28 | CSP50.27 | CSP50.30 | CSP50.31 | CSP50.33 | CSP50.34 |
| DIAMETER (INCH) | 15 | 16 | 17 | 18 | 20 | 22 | 24 | 26 | 30 | 32 |
| TYPE | CSP50.35 | CSP50.36 | CSP50.37 | CSP50.38 | CSP50.39 | CSP50.40 |
| DIAMETER (INCH) | 34 | 36 | 40 | 42 | 46 | 48 |
CALSIUM SILLICATE PIPE TEBAL 65 mm
| TYPE | CSP65.01 | CSP65.02 | CSP65.03 | CSP65.04 | CSP65.05 | CSP65.06 | CSP65.07 | CSP65.08 | CSP65.09 | CSP65.10 |
| DIAMETER (INCH) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3 | 3-1/2 | 4 |
| TYPE | CSP65.12 | CSP65.14 | CSP65.16 | CSP65.20 | CSP65.22 | CSP65.24 | CSP65.26 | CSP65.28 | CSP65.27 | CSP65.30 | CSP65.31 |
| DIAMETER (INCH) | 5 | 6 | 8 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 26 |
| TYPE | CSP65.32 | CSP65.33 | CSP65.34 | CSP65.36 | CSP65.37 |
| DIAMETER (INCH) | 28 | 30 | 32 | 36 | 40 |
CALSIUM SILLICATE PIPE TEBAL 75 mm
| TYPE | CSP75.01 | CSP75.02 | CSP75.03 | CSP75.04 | CSP75.05 | CSP75.06 | CSP75.07 | CSP75.09 | CSP75.10 | CSP75.12 |
| DIAMETER (INCH) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | 2-1/2 | 3-1/2 | 4 | 5 |
| TYPE | CSP75.14 | CSP75.15 | CSP75.16 | CSP75.17 | CSP75.20 | CSP75.22 | CSP75.24 | CSP75.25 | CSP75.26 | CSP75.28 |
| DIAMETER (INCH) | 6 | 7 | 8 | 9 | 12 | 14 | 16 | 17 | 18 | 20 |
| TYPE | CSP75.27 | CSP75.30 | CSP75.31 | CSP75.32 | CSP75.33 | CSP75.36 | CSP75.37 | CSP75.39 |
| DIAMETER (INCH) | 22 | 24 | 26 | 28 | 30 | 36 | 40 | 46 |
CALSIUM SILLICATE PIPE TEBAL 100 mm
HANYA TERSEDIA DALAM DIAMETER 36 inch

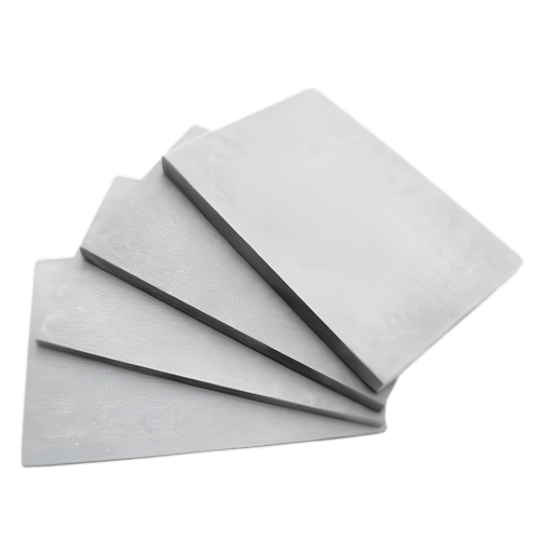

CALSIUM SILLICATE BOARD
Calsium Sillicate Board adalah kalsium silikat yang berbentuk papan atau lembaran. berikut ini adalah ukuran-ukuran calsium sillicate board yang tersedia.
TYPE CSB 150/25
- Ukuran 610 mm x 150 mm
- Tebal 25 mm

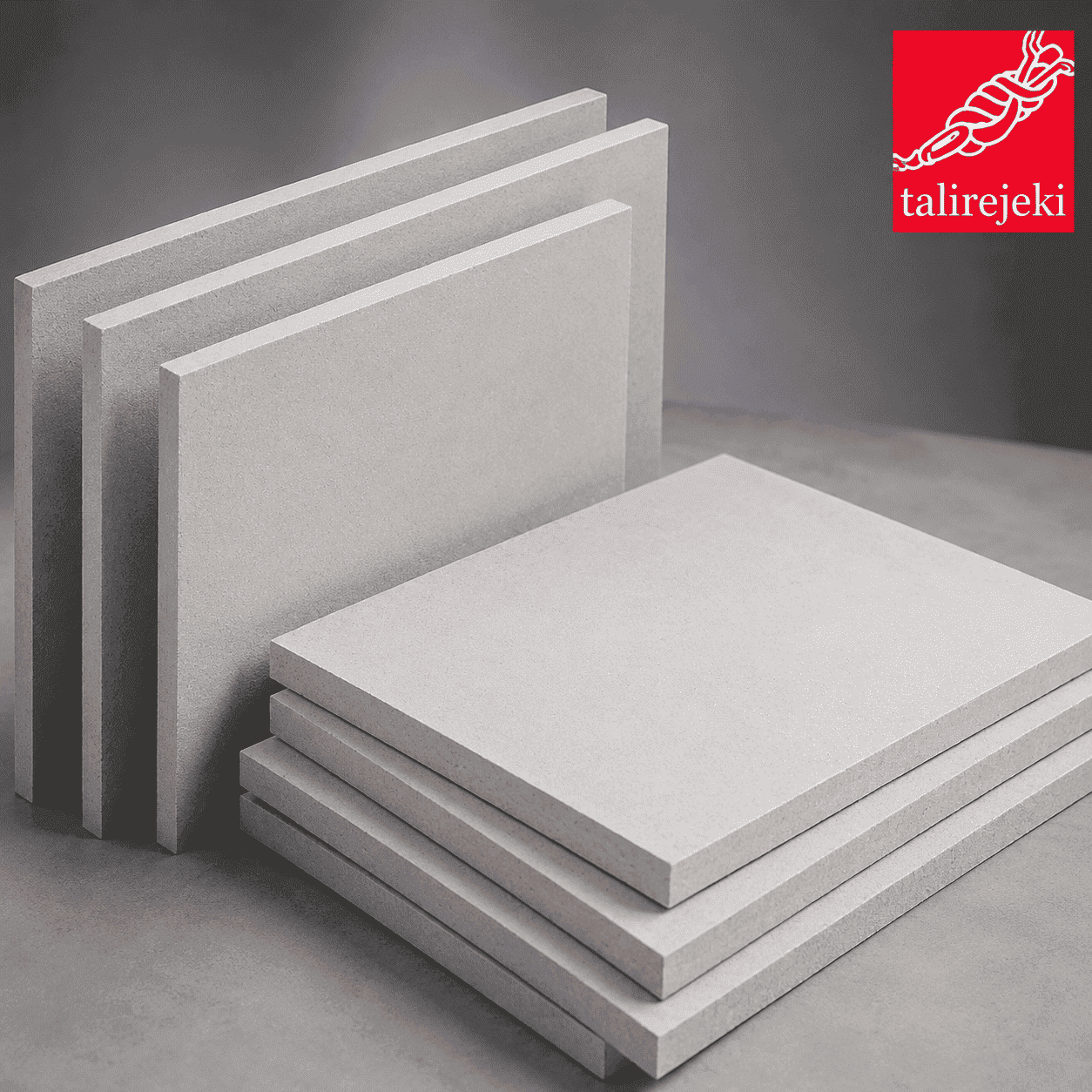

TYPE CSB 150/30
- Ukuran 610 mm x 150 mm
- Tebal 30 mm

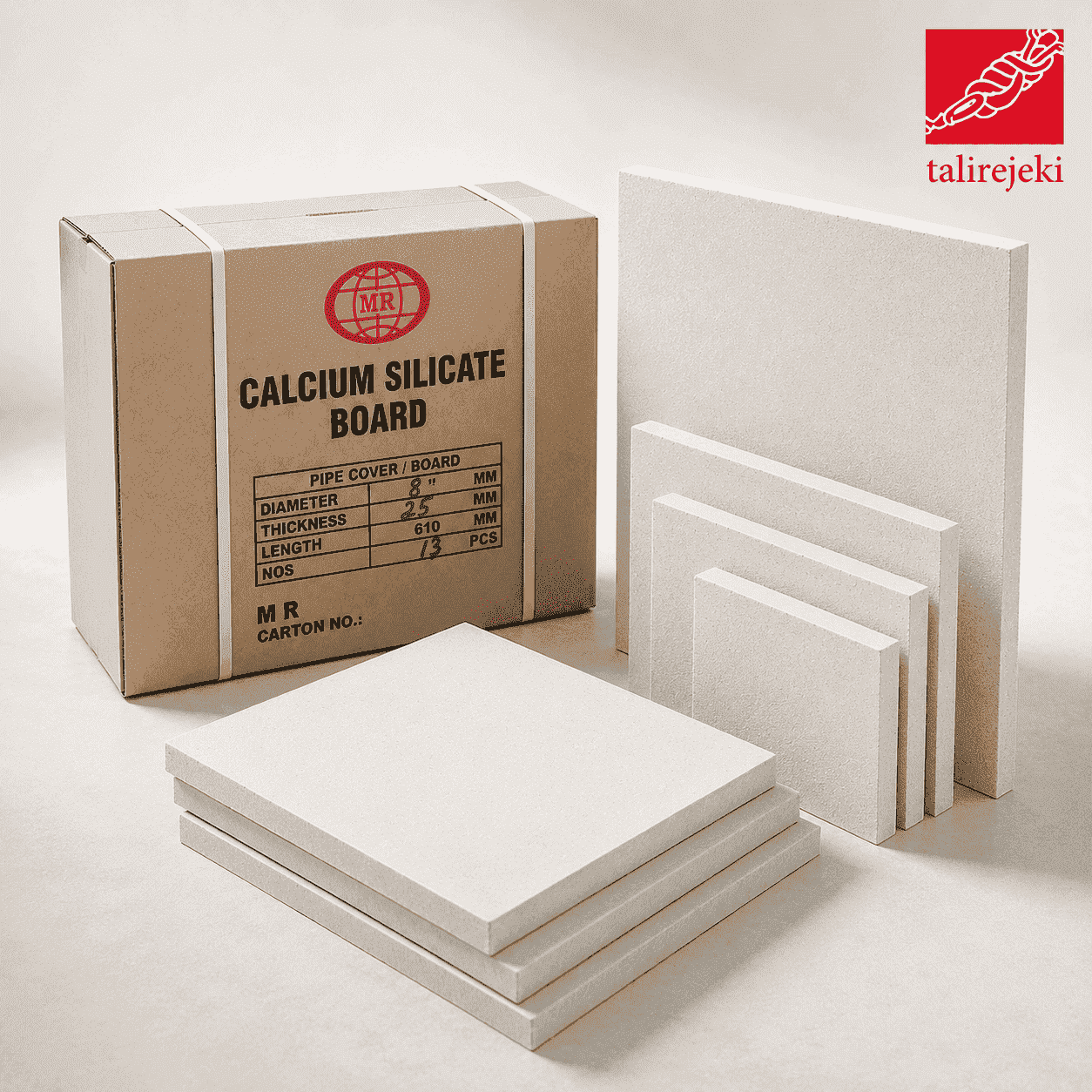

TYPE CSB 150/40
- Ukuran 610 mm x 150 mm
- Tebal 40 mm
TYPE CSB 150/50
- Ukuran 610 mm x 150 mm
- Tebal 50 mm
TYPE CSB 150/60
- Ukuran 610 mm x 150 mm
- Tebal 60 mm
TYPE CSB 150/65
- Ukuran 610 mm x 150 mm
- Tebal 65 mm
TYPE CSB 150/70
- Ukuran 610 mm x 150 mm
- Tebal 70 mm
TYPE CSB 150/75
- Ukuran 610 mm x 150 mm
- Tebal 75 mm
TYPE CSB 300/25
- Ukuran 610 mm x 300 mm
- Tebal 25 mm
TYPE CSB 300/30
- Ukuran 610 mm x 300 mm
- Tebal 30 mm
TYPE CSB 300/40
- Ukuran 610 mm x 300 mm
- Tebal 40 mm
TYPE CSB 300/50
- Ukuran 610 mm x 300 mm
- Tebal 50 mm
TYPE CSB 300/60
- Ukuran 610 mm x 300 mm
- Tebal 60 mm
